Brand：中惠ZHST
Model：100A
Product Origin：Nanjing, Jiangsu, China
Supply capacity：20-30 sets per month
Customized or not：Yes
Delivery Time：15 Days
Product Features
1.Allows long travel with heavy lifting capacity. 2.Unparalleled stability with accurate control. 3.Running at a constant velocity with a long lifespan. 4.Rated speed up to 300mm/s. 5.Highly versatile and easy for configuration and theater installation. |
|
Product Description

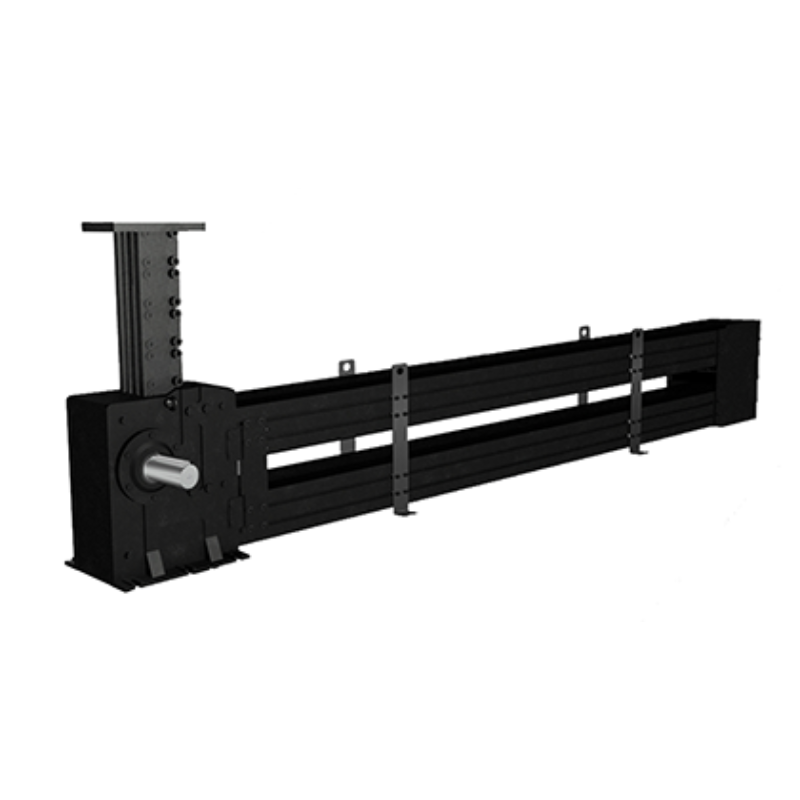

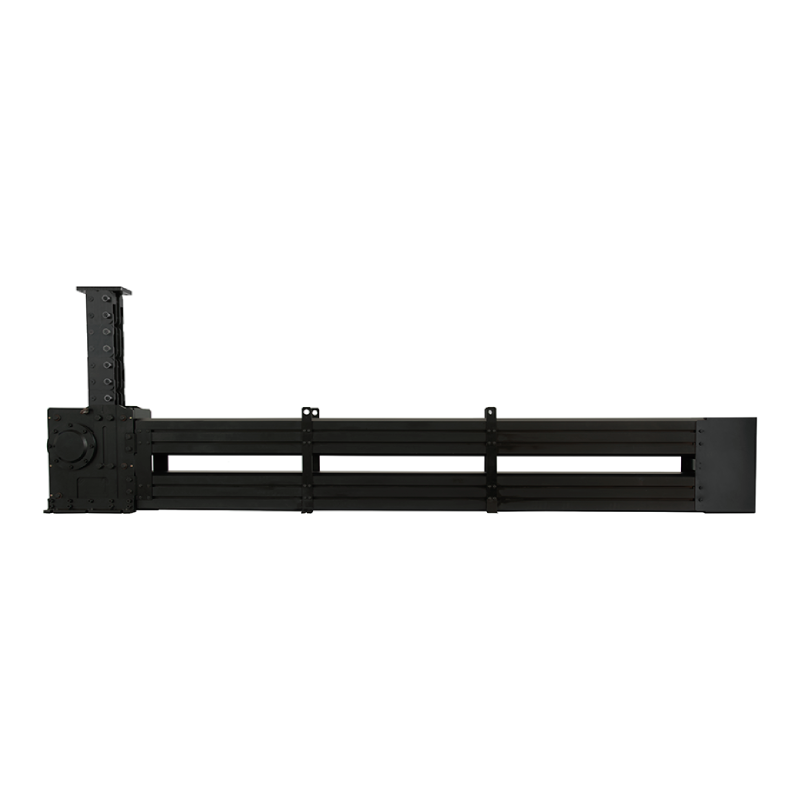

● The 100A lift chain is specifically designed for heaving the payload through a long distance in theatre and touring production settings. Its reliable lifting motion is driven by a durable sprocket gear - chain mechanism. This product is the perfect choice in theater or auditorium settings, such as the orchestra lift, the main stage lifting platform and the choral risers. |
|
Mechanical Components
● Made of sprocket, sprocket box, thrust chain, storage chain box, silent guide rail etc. |
Specification
Static Load Limit (KN)/Stroke Limit (m) | 200/3.5 |
Rated Speed (mm/s) | 300 |
Initial Height (mm) | 650 |
Static Load Limit (KN) /Max Stroke (m) | 20/10 |
Energy Efficiency(%) | 80 |
Chain Weight(kg/m) | 68.5 |
Dynamic Load Limit (KN)/ Stroke Limit (m) | 80/7.7 |
Chain Pitch (mm) | 100 |
Driving Unit Weight(kg) | 232 |
Dynamic Load Limit (KN)/Max Stroke (m) | 20/10 |
Radius of the pinion(mm) | 100 |
Chain Storage Box Weight(kg) | 23.7 |
Elevation per Revolution (mm) | 600 |
