Brand：中惠ZHST
Model：80A
Product Origin：Nanjing, Jiangsu, China
Supply capacity：20-30 sets per month
Customized or not：Yes
Delivery Time：15 Days
Product Description

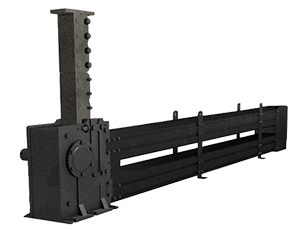

The 80A lift chain is specifically designed for heaving the payload through a long distance in theatre and touring production settings. Its reliable lifting motion is driven by a durable sprocket gear - chainmechanism. This product is the perfect choice in theater or auditorium settings, such as the orchestra lift, the main stage lifting platform and the choral risers. |
 |
Specification
Static Load Limit (KN)/Stroke Limit (m) | 120/3.0 |
Rated Speed (mm/s) | 300 |
Initial Height (mm) | 550 |
Static Load Limit (KN) /Max Stroke (m) | 35/8 |
Energy Efficiency(%) | 80 |
Chain Weight(kg/m) | 49 |
Dynamic Load Limit (KN)/ Stroke Limit (m) | 64/5.6 |
Chain Pitch (mm) | 80 |
Driving Unit Weight(kg) | 151 |
Dynamic Load Limit (KN)/Max Stroke (m) | 35/8 |
Radius of the pinion(mm) | 80 |
Chain Storage Box Weight(kg) | 18.3 |
Elevation per Revolution (mm) | 480 |
