Place of Origin： Guangdong, China
Application： Jewelry Design Dental Model
Features： High Precision
Warranty： 1 Year
Molding Technology： LCD
Key attributes
Industry-specific attributes
Production Capacity： 10000 pcs/Month
Year： 2023
Forming size： 200*195.84*122.4mm
Other attributes
Place of Origin： Guangdong, China
Application： Jewelry Design Dental Model
Features： High Precision
Warranty： 1 Year
Molding Technology： LCD
Applicable Industries： Building Material Shops, Machinery Repair Shops, Home Use,
Printing Shops, Advertising Company
Weight： 11 KG
Key Selling Points： High-accuracy
Dimension(L*W*H)： 16.4x11.4x10.2 in
Voltage： 80W rated power
Usage： Label Printer
Automatic Grade： Semi-automatic
Color & Page： single color
Condition： New
Machinery Test Report： Provided
Video outgoing-inspection： Provided
Warranty of core components： 1 Year
Core Components： Motor, Engine
Product name： Photon Mono X 6Ks
Machine Weight： 8.5kg/18.7lb.
Printing Volume： 4.76L/161oz.
Machine Leveling： 4-point manual leveling
Removable Cover： Effectively block UV radiation
Zaxis： Dual-linear Z-axis, 10μm precision
Large Film Protector： Replaceable anti-scratch film
Data Input： USB Type-A 2.0
Power Supply： 80W rated power
Control Panel： 3.5-inch TFT touch control
Packaging & delivery
Package Type: Carton with foam
Supply Ability
Supply Ability： 100 Set/Sets per Week
Company Promises
Anycubic Photon Mono X 6Ks Product Details
Removable Cover Effectively blocks UV radiation |
| Z Axis Double liners with 10 μm accrace |
Resin Tank Unibody design with scale lines | Build Platform Laser engraving aluminum alloy | |
| Exposure Screen 9.1" monochrome 6K(5,760x 3,600 px) resolution 380:1 contrast ratio 6.5% light transmittance 2,000 hours typical lifespan | Oversized Protection Film Replaceable anti-scratch film | |
| Power Supply 80W rated power | ||
| Light Source Upgraded Anycubic LighTurbo Parallel matrix light source | Data lnput USB Type-A 2.0 | |
ControlPanel 3.5"TFT touch-control | Power Button On / off switch | |
| Machine Leveling Printing Speed 4-point manual leveling 15~60mm/h Machine Weight Printing Volume 18.71b./8.5kg 161oz./4.76L
Machine Dimensions Printing Dimensions 16.4 x 11.4 x 10.2in./ 7.8 x 7.7 x 4.8in./ 417 x 290 x 260 mm(HWD) 200x195.84x122.4mm(HWD) | |

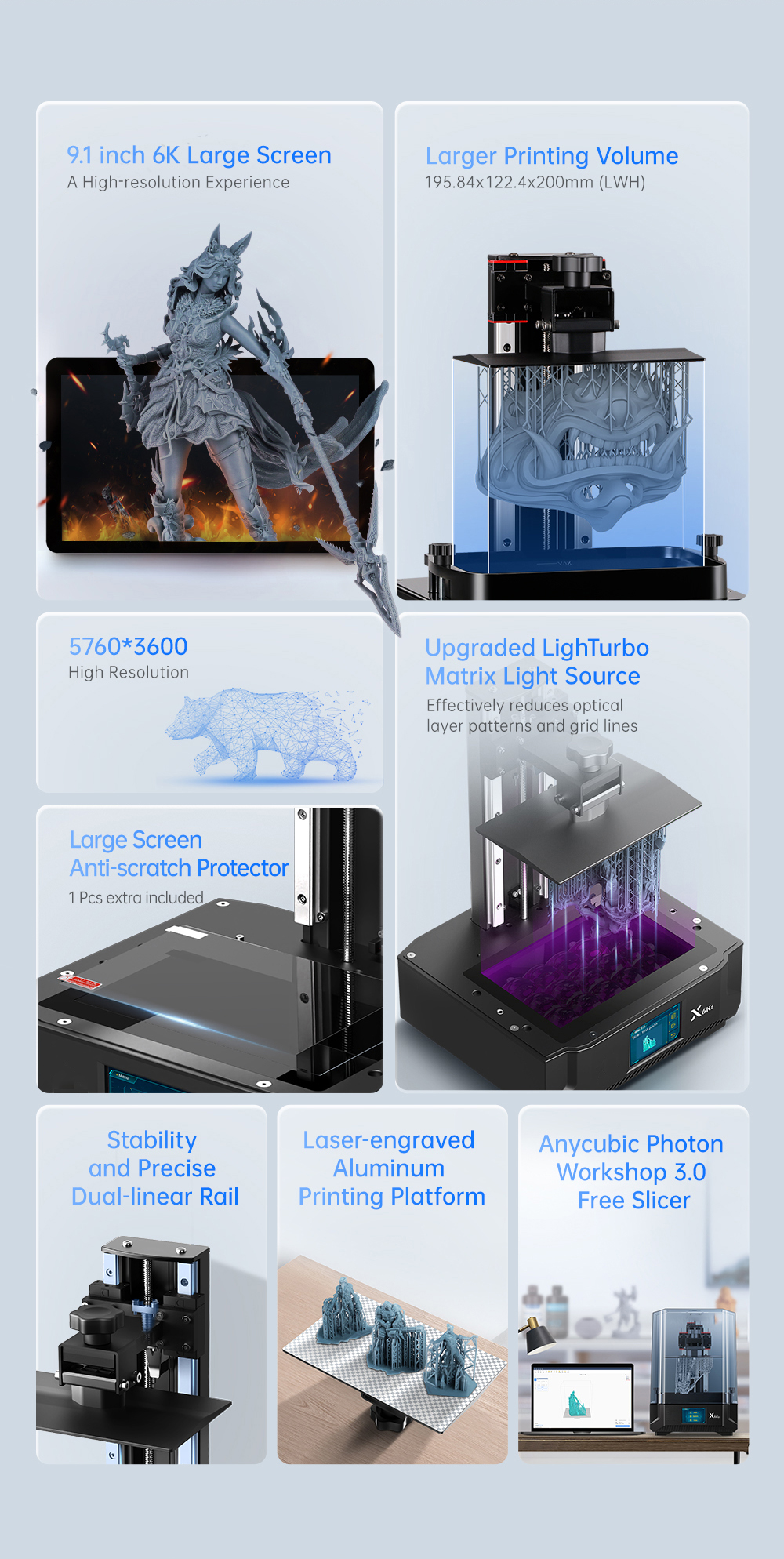

Products Description

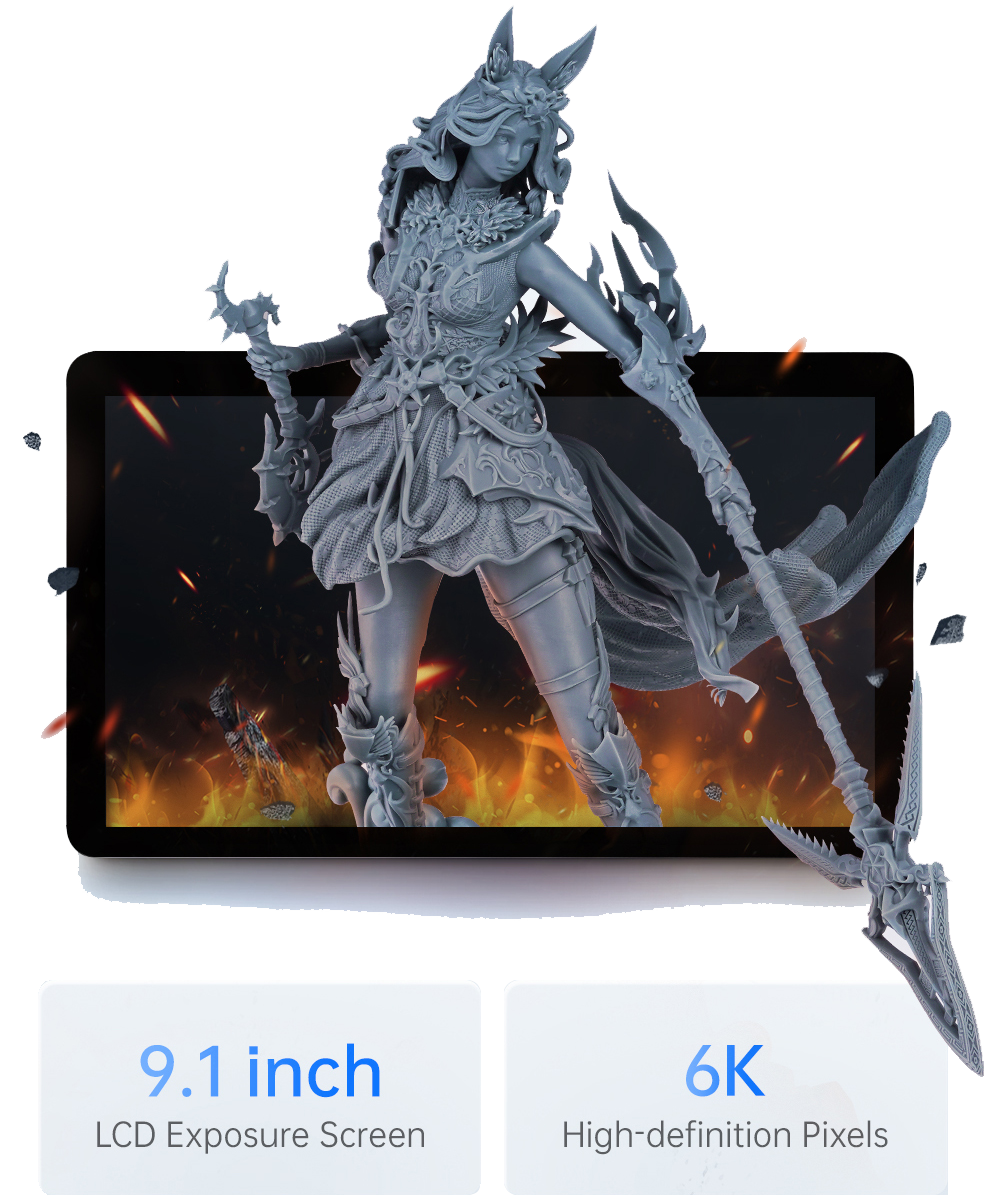

Advanced and Precise 9.1 inch 6K Screen - A High-resolution Experience Adopts a 9.1 inch 6K high-definition monochrome exposure screen with a resolution of up to 5760*3600px, bringing sharper and delicate details presentation supported by a high contrast ratio of 380:1.

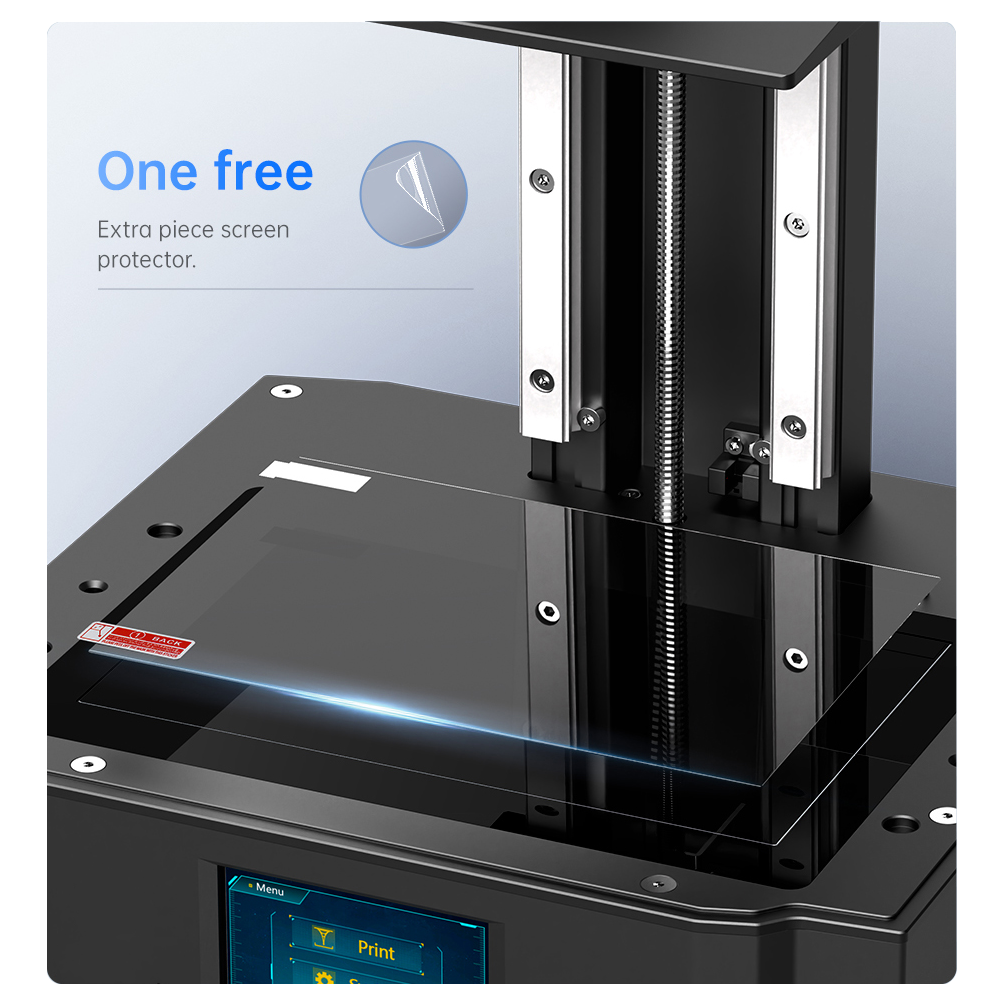

*Based on the test results of Anycubic lab., for reference only. Comes with a high light transmittance anti-scratch film protector, effectively protecting the screen from wearing and scratches while ensuring printing accuracy. One free extra piece included for easy replacement
|
Large Printing Dimension 4.76L Printing Volume A printing dimension of 195.84x122.4x200mm(LWH) brings you up to a maximum printing volume of 4.76L, ensuring more printings in one go.
|

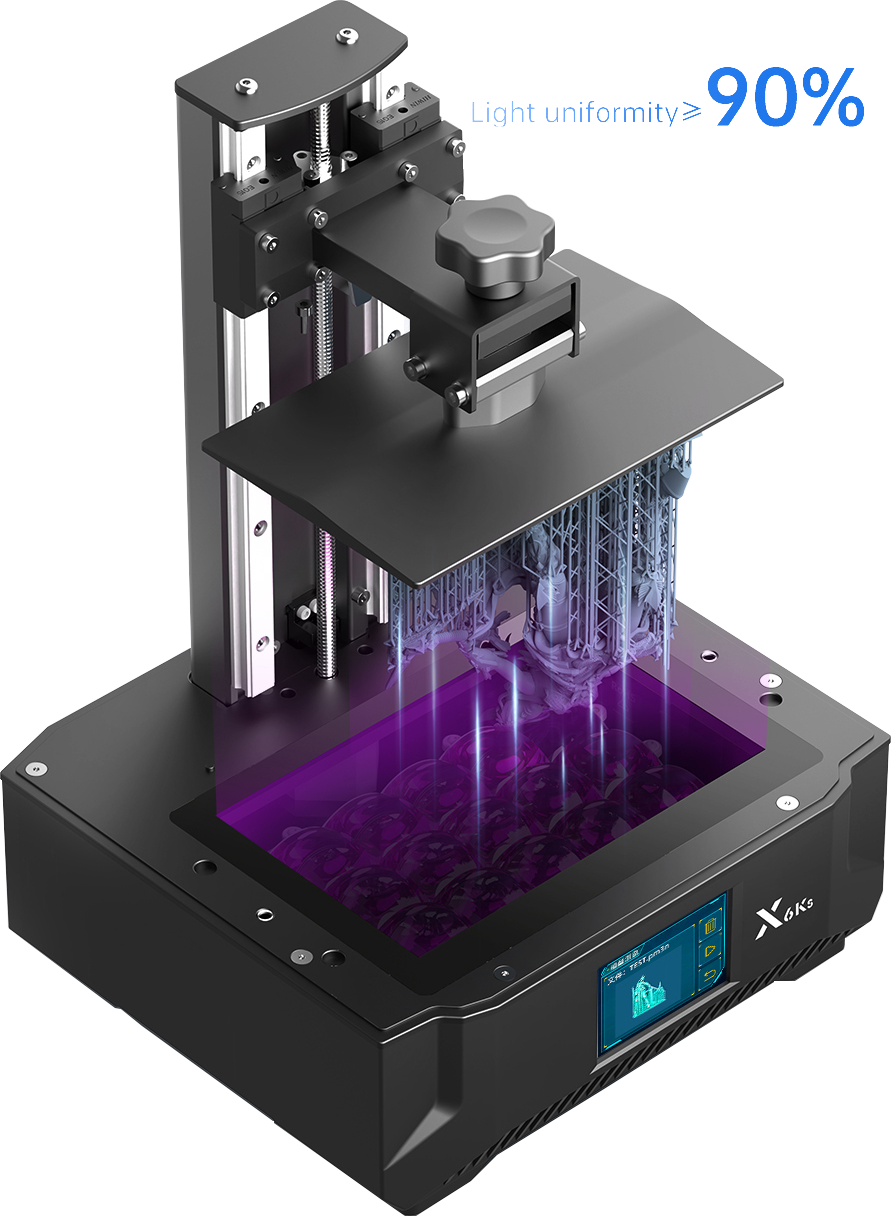

Sharp and Delicate Details Upgraded Light Source Stable Dual-linear Rail The upgraded Anycubic LightTurbo matrix light sourceand high- precision textured optical lens provide a stableand even parallel light source, effectively removingoptical layers and grid lines and creating a smooth and delicate model surface.Printing speed reaches15-60 mm/h, collect all your models even sooner.
|

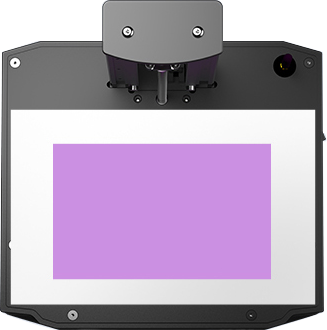

No grid lines

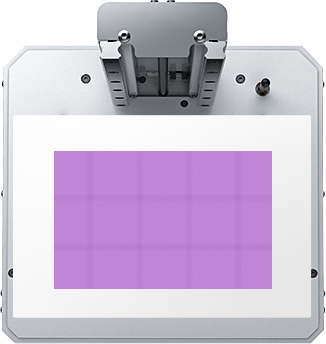

Upgraded Anycubic LightTurbo matrix light source | Grid lines
Other light sources |

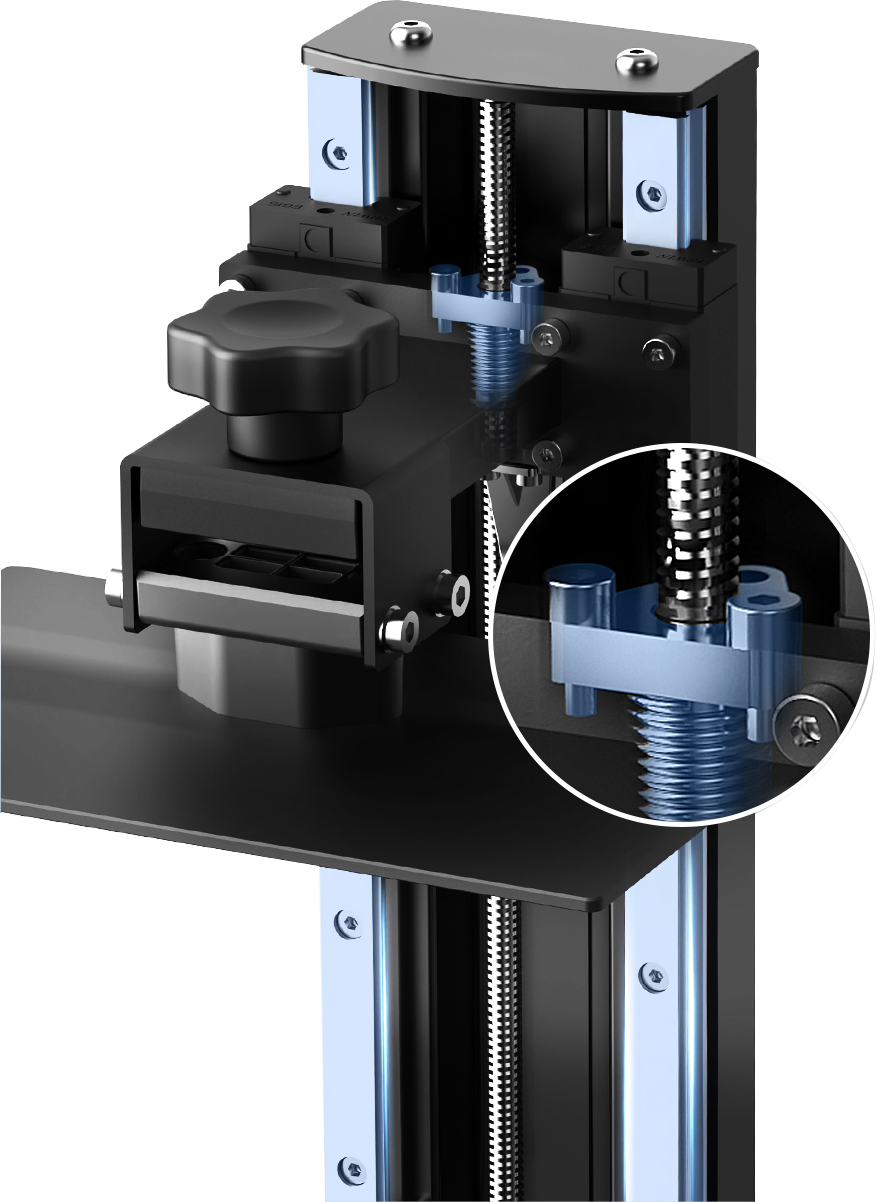

The Stable Dual-linear Z-axis Rail and its highly wear-resistant POM anti-backlash nuts restrain the Z-axis' stability to the micron level, effectively eliminating printing layers and ensuring all printing details.
|

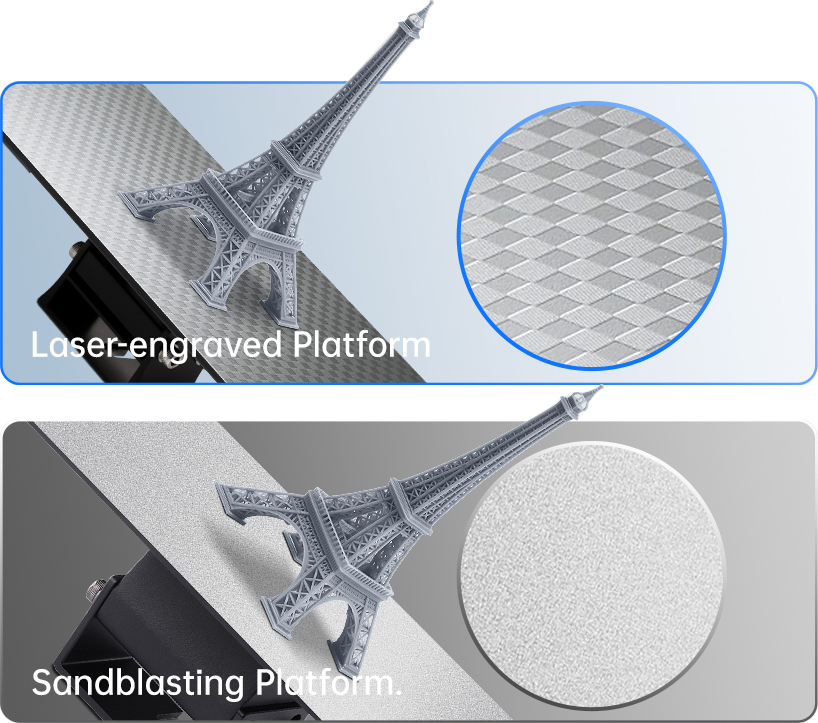

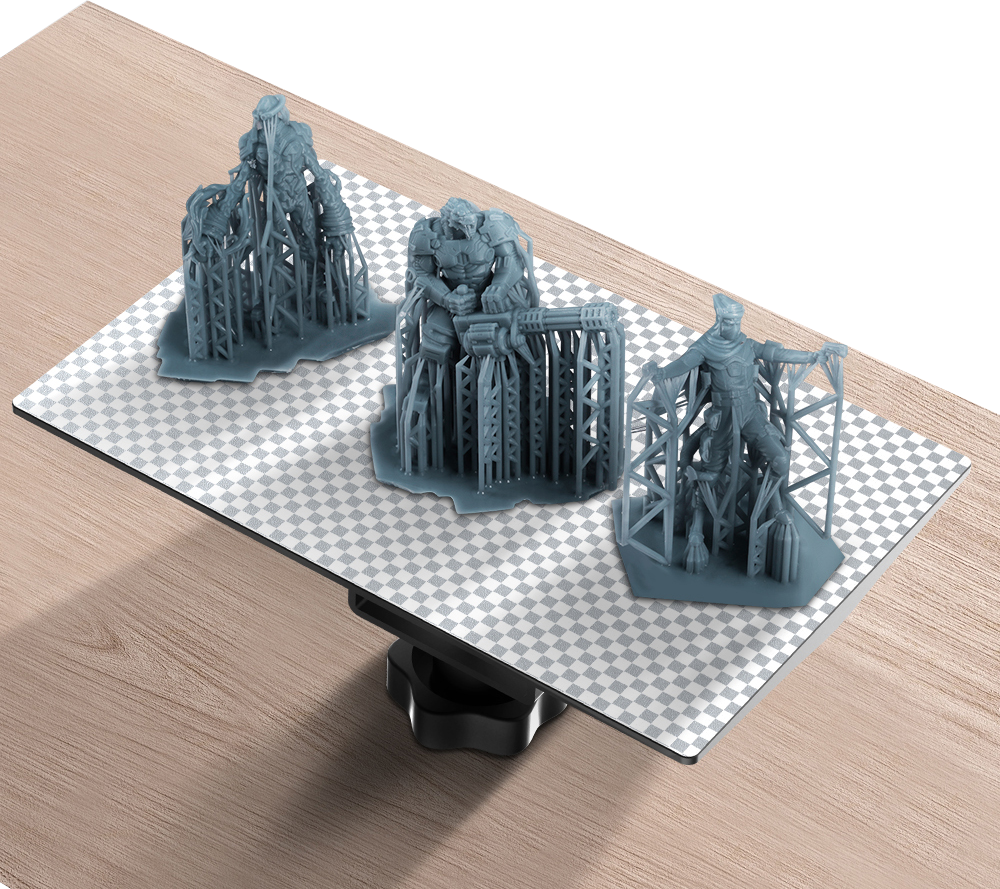

A Greater Printing Experience Laser-engraved Buidl Platform The Laser-engraved technique that the printing platform adopts outstands sandblasting ones in platform flatness and adhesion, greatly reducing fall-offs and warping-ups and bringing you an even better success rate.
|

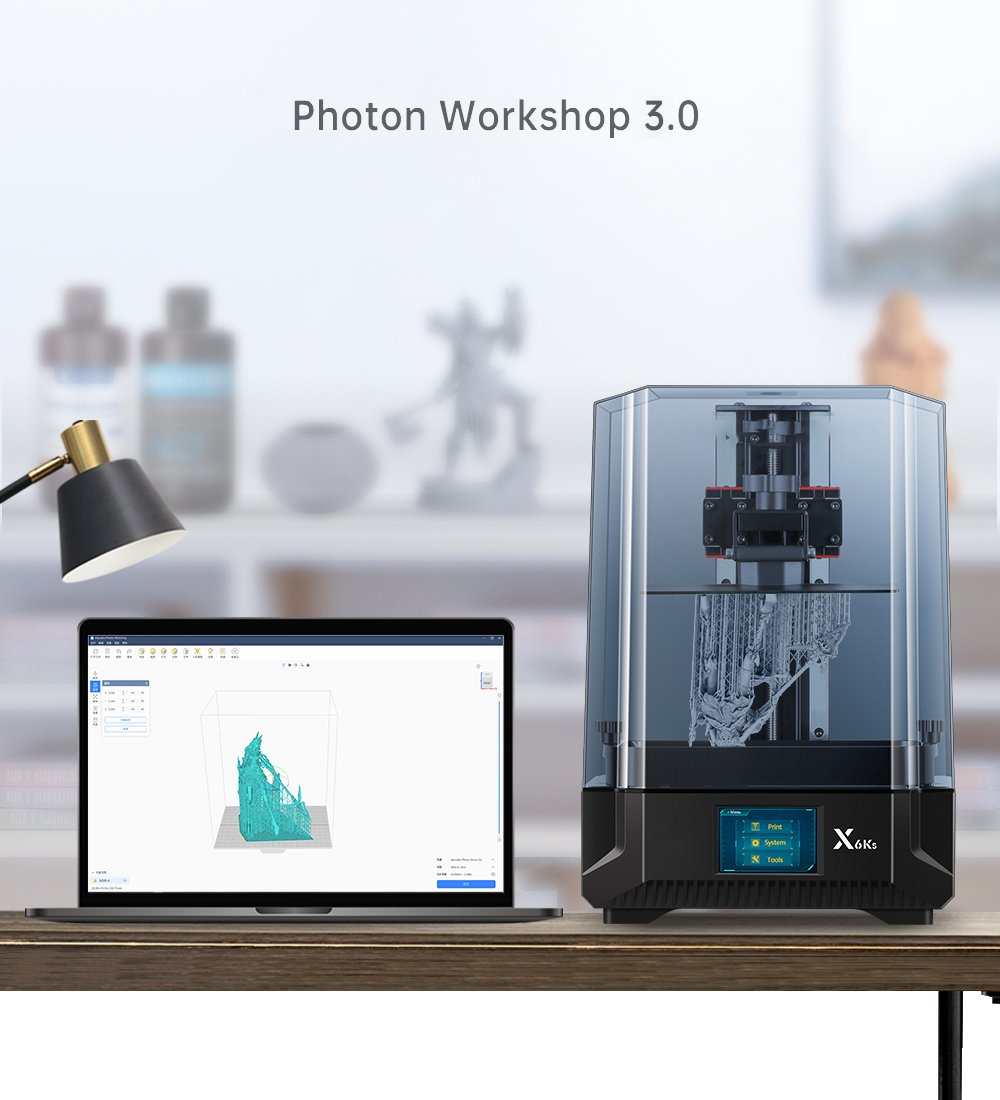

Upgraded Slicer Professional and Free The upgraded free self-developed slicer Anycubic Photon Workshop 3.0 brings you an even better slicing experience in punching, supporting, shelling and layout arranging.Simplified Ul makes slicing easier.The new model repairing function also helps boost the printing success rate.
|
Recommended Print Setting
| Resin to Print | Layer Thickness | Normal Exposue Time | Off Time | Bottom Exposue Time | Bottom Layers | Anti-alias | Z Lift Distance | Z Lift Speed | Z Retract Speed |
| Standard Resin | 0.05 mm | 2.5 s | 0.5 s | 20 s | 5 | 1 | 8 mm | 2mm/s | 3 mm/s |
| Water-Wash Resin + | 0.05 mm | 2.5 s | 0.5 s | 20 s | 5 | 1 | 8 mm | 2mm/s | 3 mm/s |
| ABS-Like Resin + | 0.05 mm | 2.5 s | 0.5 s | 20 s | 5 | 1 | 8 mm | 2mm/s | 3 mm/s |
| Plant-Based Resin | 0.05 mm | 2.5 s | 0.5 s | 20 s | 5 | 1 | 8 mm | 2mm/s | 3 mm/s |
| UV Tough Resin | 0.05 mm | 2.5 s | 0.5 s | 20 s | 5 | 1 | 8 mm | 2mm/s | 3 mm/s |
| DLP Craftsman Resin | 0.05 mm | 3 s | 0.5 s | 20 s | 5 | 1 | 8 mm | 2mm/s | 3 mm/s |
| ABS-Like Resin Pro | 0.05 mm | 3 s | 0.5 s | 20 s | 5 | 1 | 8 mm | 2mm/s | 3 mm/s |
| High Clear Resin | 0.05 mm | 4 s | 0.5 s | 25 s | 5 | 1 | 8 mm | 2mm/s | 3 mm/s |
